SAIYIS LP20 3 Pin IP67 Waterproof Connector 30A | Bayonet Quick Disconnect Male Female Cable Plug Receptacle for Aerial Lift Control Box
Regular Price
$22.99
📦 Bulk Order Inquiry
Need bulk pricing on connectors or wire harness parts? Contact us for a dedicated quote.
Email: liutao@awp-parts.com
Need bulk pricing on connectors or wire harness parts? Contact us for a dedicated quote.
Email: liutao@awp-parts.com

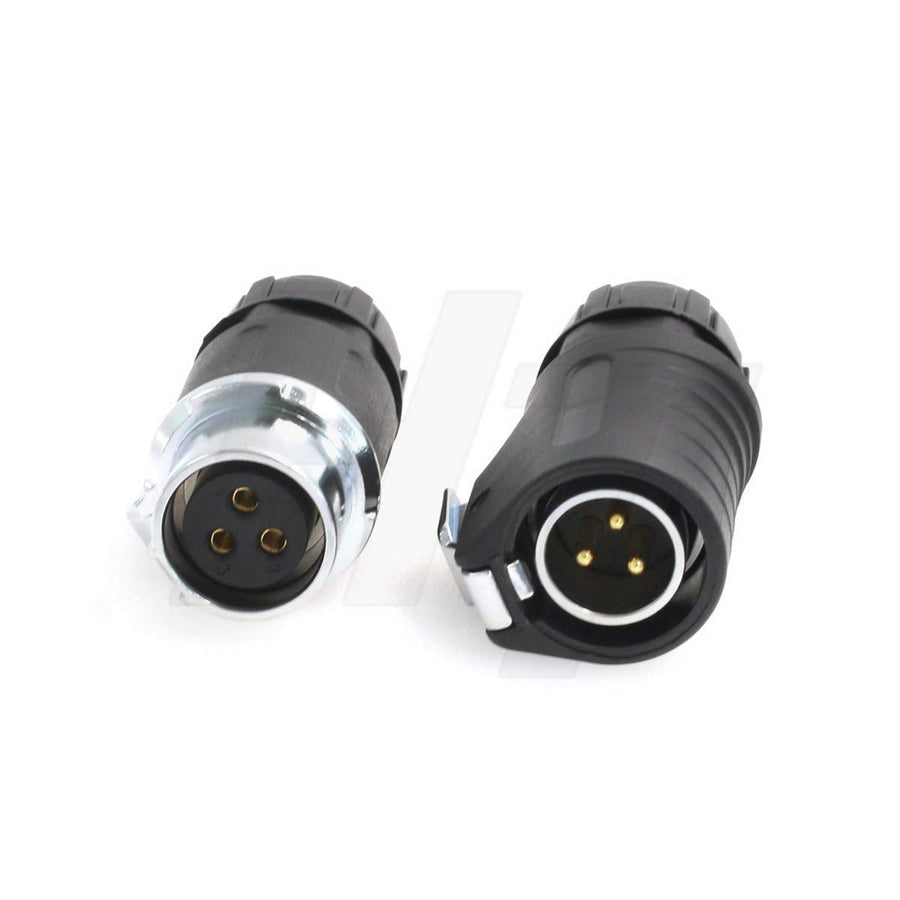

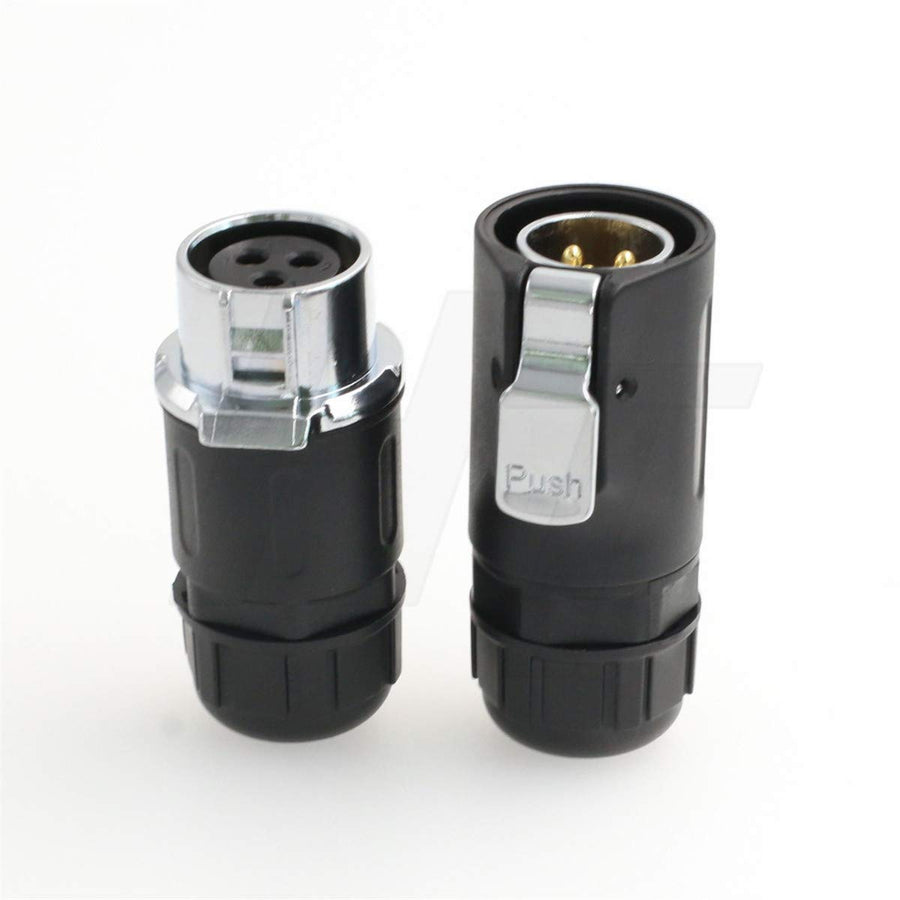

SAIYIS LP20 3 Pin IP67 Waterproof Connector – 30A Bayonet Quick Disconnect
Applications
Ideal for watertight indoor/outdoor applications including:
- Aerial lift & AWP control box wiring
- Outdoor electric tools & appliances
- LED lighting panels & solar energy systems
- Marine & underwater equipment
- Outdoor security cameras & communications
- Medical devices & industrial machinery
Specifications
| Parameter | Value |
|---|---|
| Model | LP20 — 3 Pin |
| IP Rating | IP67 (Waterproof & Dustproof) |
| Rated Current | 30A |
| Coupling Type | Bayonet Coupling |
| Panel Cutout Diameter | 20 mm |
| Cable Outer Diameter | 6–12 mm (2~7 pin) / 4–6 mm (8~12 pin) |
| Shell Material | Thermoplastic Nylon66, Fire Resistance V-0 |
| Insert Material | Thermoplastic PPS, max 260°C |
| Contact Material | Brass with Gold Plating |
| Termination | Solder |
| Mating Cycles | >500 times |
| Temperature Range | -25°C ~ +85°C (-13°F ~ +185°F) |
| Weight | 0.15 kg / 0.33 lb |
| Package Included | 1 × Cable Plug (Male Pins) + 1 × Cable Receptacle (Female Pins) + 1 × Waterproof/Dustproof Cap |
Why Choose SAIYIS?
- ✅ IP67 rated – fully waterproof and dustproof for harsh outdoor environments
- ✅ Gold-plated brass contacts – superior conductivity and corrosion resistance
- ✅ V-0 fire resistance – Nylon66 shell meets strict flame retardant standards
- ✅ Complete set – plug + receptacle + protective cap included
